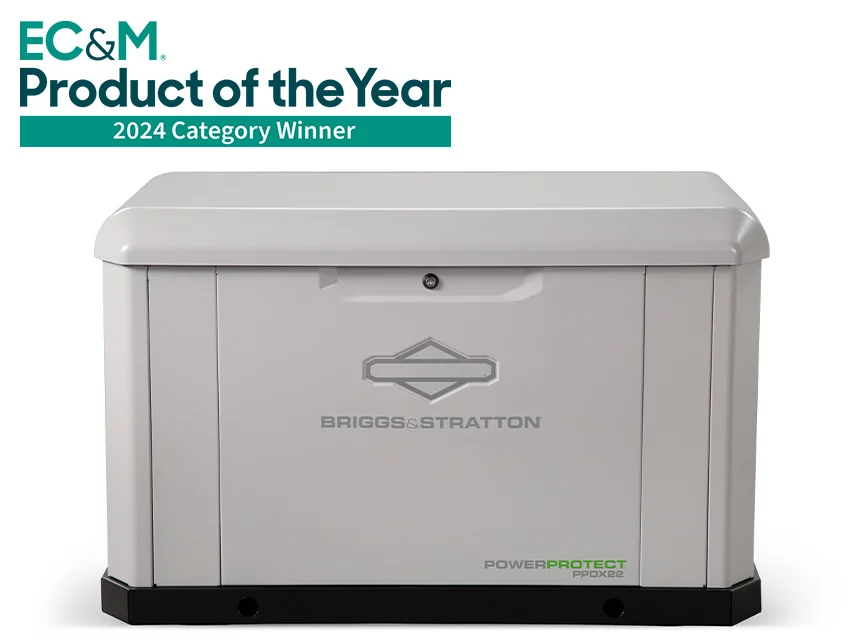

PowerProtect™ DX 22kW Home Standby Generator

When you want to keep more of your home operating during an outage, the Briggs & Stratton PowerProtect™ DX 22kW Home Standby Generator delivers the capacity and starting power needed for demanding residential applications. It produces 22kW on both natural gas and liquid propane and offers 45 kVA of motor-starting capability.

East Texas Generators is a Briggs & Stratton Evolution Dealer specializing in PowerProtect™ DX whole-home generator installation throughout Tyler, Jacksonville, Palestine and East Texas.

  • 22kW Residential Power: Supports larger household loads during prolonged outages.
  • 45 kVA Motor Starting: Helps start demanding appliances and equipment.
  • DX Protection: Includes Briggs & Stratton’s listed 10-year comprehensive limited warranty.
  • Turnkey Generator Service: Installation, maintenance and repairs available from one local generator company.

Looking for a qualified PowerProtect™ DX Generator installer in East Texas? Request your free estimate from East Texas Generators today.

FEATURES

1This generator is listed in accordance with UL (Underwriters Laboratories) 2200 (stationary engine generator assemblies) and CSA (Canadian Standards Association) standard C22.2 No.100-14 (motors and generators).
2In its named class.
3See operator’s manual or briggsandstratton.com for complete warranty details.
4The installation manual contains specific instructions related to generator placement in addition to NFPA 37, including the requirement that carbon monoxide detectors be installed and maintained in your home or business.

SPECS

Model Number
040780
Running Watts (Liquid Propane) kW**
22
Running Watts (Natural Gas) kW**
22
Running Amperage (Liquid Propane) Amps**
91.7
Running Amperage (Natural Gas) Amps**
91.7
Voltage
120 / 240
Circuit Breaker Amps
100
Engine Brand
Briggs & Stratton® Vanguard® Commercial-Grade
Engine Displacement (cc)
993
Motor Starting Capability (kVA)
45
Assembled Length (in.)
46.5
Assembled Width (in.)
26.8
Assembled Height (in.)
28.4
Assembled Weight (lbs.)
465
Normal Operating Sound
68 db(A)
Fuel Consumption (Liquid Propane) (50% Load, BTU/hr)***
217,000
Fuel Consumption (Natural Gas) (50% Load, BTU/hr)***
194,000
Limited Warranty (Years)†
10-Year Comprehensive

*Starting price in US dollars. Does not include installation, automatic transfer switch, accessories or shipping.
**This generator is rated in accordance with UL (Underwriters Laboratories) 2200 (stationary engine generator assemblies) and CSA (Canadian Standards Association) standard C22.2 No.100-14 (motors and generators).
***Fuel consumption rates are estimated based on normal operating conditions. Generator operation may be greatly affected by elevation and the cycling operation of multiple electrical appliances – fuel flow rates may vary depending on these factors.
†See operator’s manual or briggsandstratton.com for complete warranty details.
